Name: Multifunction Spring End Grinding Machine For Two Ends Of Springs 10KW
Brand: Xinding
SKU: XDM-E180-6

Multifunction Spring End Grinding Machine For Two Ends Of Springs 10KW

পণ্যের বিবরণ:

Place of Origin:	China
পরিচিতিমুলক নাম:	Xinding
সাক্ষ্যদান:	CE / ISO9001
Model Number:	XDM-E180-6

প্রদান:

Minimum Order Quantity:	1 set
মূল্য:	Negotiable
Packaging Details:	Standard heat treated wooden case
Delivery Time:	15 days
পরিশোধের শর্ত:	টিটি এলসি
Supply Ability:	20 sets per month

যোগাযোগ

বিস্তারিত পণ্যের বর্ণনা

Wire diameter:	0.80-6.00mm	Power:	10kw
Weight:	2000kg	Package:	Wooden case
Control:	CNC	Precision:	High
লক্ষণীয় করা:	spring grinding machine , spring end grinder

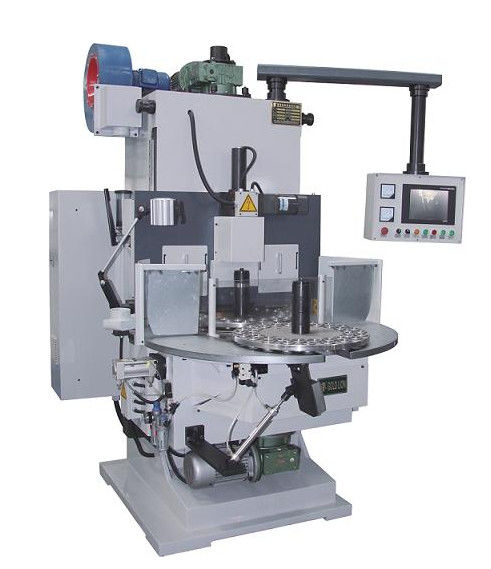

CNC controlled spring end grinding machine for two ends of springs

Technical Parameter:

Gringding Wheel	Ф420*50mm
Feeding Plate	Ф580mm
MAX.O.D	Ф5-80mm
Wire Diameter	Ф 0.8-6mm
Spring Height	5-180mm
Power	10KW
Overall Dimension	L1600W1550H2350
Weight	2000KG

Details:

1. Vertical double surface grinding machine with CNC control.
This machine is equipped with Mitsubishi CNC system to control grinding process on both ends of springs simultaneously.
2. Feeding speed of grinding heads is adjustable on the basis of pressure from springs.
Fine grinding process is available,as well as compensation function on grinding wheels. The grinding process is operated manually and automatically.
3. For replacing is very suitable for high-precision grinding proposal.
